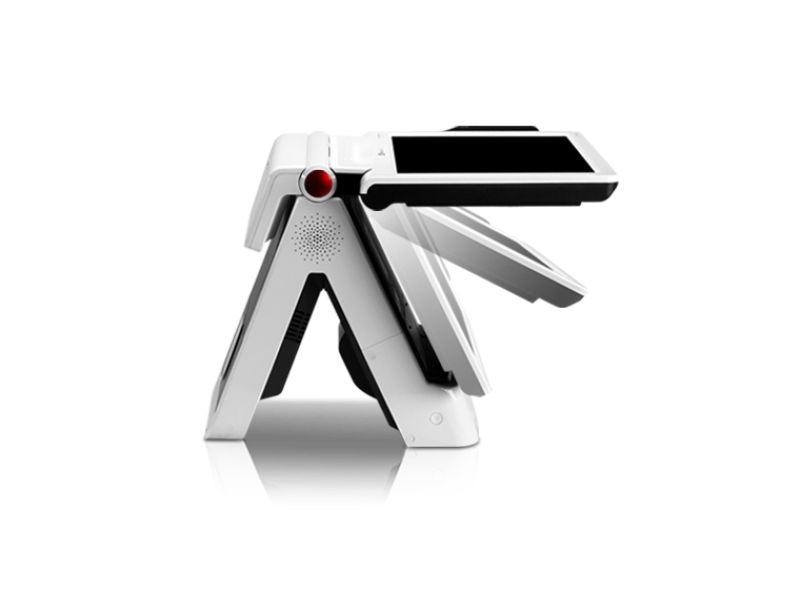

All-In-One Touch POS Model 7 w/ Built-in Printer
The Model 7 is the first system in the industry to combine all POS components in one, attractive looking design. Engineered to be a versatile, compact, and reliable system, the 100% touch screen operated Model 7 can be customized with an optional 12" customer facing LCD display, barcode scanner, scale, or any other peripherals that a business may need.
Users also have the option of adding a 4-channel DVR card for an optional integrated multi-camera security system, making the Model 7 the ultimate business system.
Benefits of Model 7 include
- Versatile Design Suitable for Most Business Types
- 15" Touch-Operated LCD Display
- Integrated Thermal Printer
Processor (CPU) Intel® Celeron Mobile 1.5GHz
Storage (HDD) 80GB 2.5" HDD
System Memory 512MB DDR2 SODIMM Memory
Video Intel 82915 GMCH Integrated Graphics Media Accelerator 900 Dual Display Support, Clone Mode Support
Display 15" TFT LCD with 5 Wired Resistive Touch Screen 1024 × 768 Resolution
Internal I/O Integrated MSR: Track 2 and Track 3 Support Integrated Thermal Printer: Built-in Seiko Instruments Mechanism EPSON Command Compatible Parallel Port × 1: Reserved for 3" Thermal Printer USB × 2: Reserved for touch controller and EMV CARD Reader(Optional) PS/2 Keyboard Port: Reserved for MSR Controller RS232-C Port: - COM3 Reserved for MSR Controller - COM4 Reserved for VFD Only
Standard I/O 5 USB Ports: Front × 3, Rear × 2 RS232-C: COM1-COM3 with +5V/12V Power Output on 9 Pin LAN: 10/100 Base-T Ethernet with RJ45 Audio: MIC In × 1 / Line × 1 / Speaker Out × 1 Cash Drawer: RJ11 with power output / Support EPSON Type PS/2: Keyboard × 1 / Mouse × 1
Peripherals (Optional) Integrated CDP: VFD Type, 20 Columns × 2 Lines Integrated 2nd Display: - 12" TFT LCD Display, 800 × 600 Resolution - 8" TFT LCD Display, Support Independence Multimedia Player
Power Supply AC 110-220 Free Voltage / Max 230 Watt
Dimension 360(W) × 351(H) × 344(D)
OS Support Windows CE, 2000, XP, XPE, WEPOS, Linux
| POS Customer Display | The 7 Series gives you the option to integrate a 2-line 20-character standard customer display or a 12” LCD customer display. |
|---|---|
| POS Series | 7 Series |
| Order Processing Speed (Transactions/Hour) | High |
| POS Scale Integration Compatible | Scale Compatible with Sintel Systems POS |
| POS System Color | White |
| Magnetic Strip Reader | Side Integrated MSR PCI - EMV Compliant |
| Warranty Inlcuded | Standard 3 years with the option to upgrade to 3 or 5 year warranty with Rapid Replacement. |
| POS Processor | Intel® Atom D525 1.8Ghz Dual Core Procesor |
| POS Housing | ABS Outershell with Aluminum Frame |
| POS Category Type | Bar, Catering, Delivery, Food Truck , Frozen Yogurt, Produce, Quick Service, Restaurant Dine-In, Retail, Salon, Weighted |
| Special Feature | 2nd VGA Video Output, Built-In-Printer, Fanless Cooling (No Dust Buildup), Independant Terminal (No Server Required), SSD Drive (No Moving Parts) |
| POS Model | Model 7 |
| POS Printer | Built-In High Speed Thermal Printer |
| Condition | New |
