All-In-One Touch
Dimensions: 17.75"(W) x 15.25"(H) x 9"~12"(D)
NOTES:
In cases where the cash drawer is placed on top of the counter, this all-in-one unit may also be placed on top of the cash drawer.
Include: Power Cable, Printer Cable, Scale Cable, Ethernet Cable, and Keyboard (optional).
POS Ounce Scale

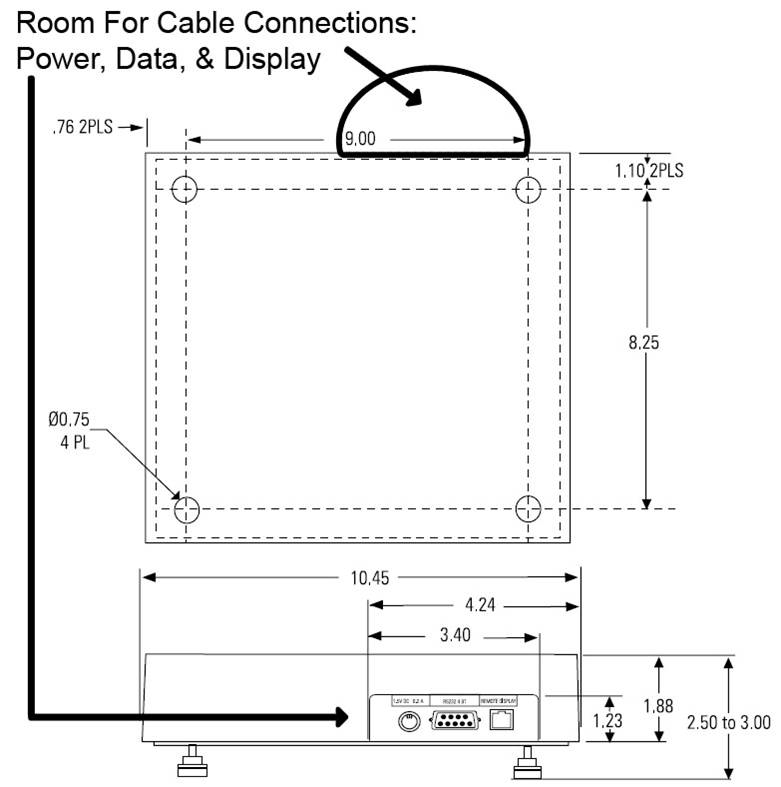

Avery-Weigh Tronix 6710 (lbs.) and 6712 (oz.) Scale |
CAS SW-10 Gram Scale | |
|---|---|---|
 |
 |
NOTES:
When installing the scale flush to the counter, the scale connection point needs to be taken into consideration. When building the base, you must leave an opening for the cables to reach the connection point.
The scale has a power connection that requires an outlet, a data cable to connect the scale and the POS System and the scale display.
16" Heavy Duty Cash Drawer
NOTES: A data cable will run from underneath the cash drawer to the back of the receipt printer. The port is located in the top left corner of the cash drawer's bottom box.
Cash Drawer Brackets: A bracket set (sold separately) may be used to install and hold cash drawers underneath a counter top for higher security. If your design requires a hole for wiring
in the counter top, the brackets must be installed with a 1-inch gap to allow the wiring to run down. You may use wood sized 1-inch thick, approximately 4-inches wide, and a minimum 16-inches long.
Thermal Receipt Printer
NOTES:
A kick cable will be installed between the printer and cash drawer for opening. The printer will require a separate outlet for power.
Printers are available in different interfaces: Serial (standard), USB (included), Parallel or Ethernet.
